Continuous Casting Machine

Continuous Casting Machine (CCM)

         High-efficiency continuous casting solutions engineered for stable operation, superior billet quality, and long campaign performance.

        CHNZBTECH supplies complete CCM systems for carbon steel, alloy steel, stainless steel, and special steel production lines. From ladle stream control to billet discharge, every section is designed to enhance casting stability, minimize defects, and maximize production efficiency.

        Our CCM systems are developed around six core objectives:

       •Consistent billet internal quality

       •Stable high-speed casting performance

       •Reduced breakout risks

       •Lower operating and maintenance costs

       •Intelligent automation and process coordination

       •Long-term operational reliability

Engineered for Steel Quality

        Steel quality is determined not only during refining, but throughout the entire solidification process.

        CHNZBTECH CCM technology is designed to reduce segregation, surface cracking, center porosity, and inclusion-related defects through accurate thermal and mechanical control during continuous casting.

        Key technologies include:

       •High-rigidity mould structure with precise oscillation control

       •Dynamic secondary cooling optimization

       •Intelligent soft reduction technology

       •High-precision segment alignment

       •Automatic mould level stabilization

       •Non-sinusoidal hydraulic oscillation

       •Servo-controlled smart segment adjustment

       •Online thermal monitoring and casting diagnostics

        By integrating metallurgy-oriented design with intelligent automation, CHNZBTECH CCM systems deliver improved strand consistency, enhanced rolling performance, and higher finished product yield.

Complete Integrated CCM Solution

        CHNZBTECH supplies complete continuous casting systems with fully integrated mechanical, hydraulic, electrical, and automation solutions.

        A typical CCM line includes:

       •Ladle and tundish handling system

       •Copper mould and oscillation system

       •Strand guide and segment system

       •Dynamic secondary cooling system

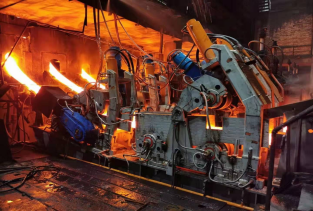

       •Withdrawal and straightening unit

       •Dummy bar handling system

       •Hydraulic cutting system

       •Billet conveying and discharge system

       •Electrical automation and PLC control system

        Each subsystem is engineered for coordinated operation, stable casting performance, simplified maintenance, and long continuous production campaigns.

CCM Configuration Options

        CHNZBTECH provides customized CCM configurations based on steel grade, production capacity, plant layout, and final product requirements.

        By Product Type: Billet CCM, Bloom CCM, Slab CCM, Round Billet CCM, Special Section CCM

        By Machine Structure: Vertical CCM, Vertical Bending CCM, Curved CCM, Horizontal CCM, Ultra-Low Head CCM

        By Casting Practice: Conventional Casting, High-Speed Casting, Multi-Strand Continuous Casting

Designed to Solve Real Casting Challenges

        Stable continuous casting depends on precise control of solidification, cooling, and strand support throughout the entire casting process. CHNZBTECH CCM systems are engineered to improve casting stability, reduce defects, and ensure reliable long-term operation.

        Reducing Breakout Risks

        Unstable shell formation and mould level fluctuation can increase breakout risks during high-speed casting. CHNZBTECH utilizes precise mould oscillation control, intelligent mould level stabilization, optimized secondary cooling, and accurate segment alignment to ensure stable shell growth and reliable strand withdrawal.

        Minimizing Cracks & Internal Defects

        Improper cooling and insufficient strand support may lead to surface cracks and internal defects during casting. Our CCM technology combines dynamic secondary cooling control, dense roller support arrangement, high-precision segment design, and intelligent soft reduction technology to improve billet quality and internal consistency.

        Reducing Center Segregation

        Center segregation directly affects rolling performance and final steel product quality. CHNZBTECH applies dynamic soft reduction, optimized casting parameters, and accurate solidification control to improve billet center density and reduce internal segregation defects.

        Improving Casting Stability

        Conventional CCM systems may experience mould level fluctuation and unstable casting performance during long production campaigns. Our advanced automation systems provide real-time process monitoring, servo-controlled smart segments, hydraulic non-sinusoidal oscillation, and intelligent process coordination for smoother and more stable casting operation.

        Lower Maintenance & Longer Service Life

        Frequent maintenance and unexpected downtime directly impact plant productivity and operating cost. CHNZBTECH CCM systems feature high-rigidity structural design, wear-resistant components, easy-maintenance segment structures, and reliable hydraulic and automation systems to improve operational uptime and long-term reliability.

Why Choose CHNZBTECH

        CHNZBTECH combines metallurgical expertise with practical steel plant engineering experience to deliver reliable and efficient continuous casting solutions.

        Rather than focusing only on equipment manufacturing, we pay close attention to casting stability, process coordination, and long-term production performance.

        Our advantages include:

       •Metallurgy-oriented customized design

       •Stable and reliable casting operation

       •Higher automation and process consistency

       •Reduced downtime and maintenance requirements

       •Competitive investment with dependable quality

       •Complete installation, commissioning, and after-sales support

        With a strong focus on operational reliability and billet quality, CHNZBTECH helps steel producers achieve cleaner steel, higher yield, and more stable continuous casting performance.
