Rolling Machine
Rolling Machine
Rolling Machine
Share to:

Rolling Machine

Brand CHNZBTECH
1. Different size of rebar, coil, strip, pipe, slab rolling mill available;
2. Customized design, ISO, DIN, GB, ASTM standard fabricate and material;
3. SGS, INTERTEK inspection service provided;
4. Punctual delivery, high end quality, and attentive service after sale;
5. CE, ISO certified;
Inquire

Rolling Machine

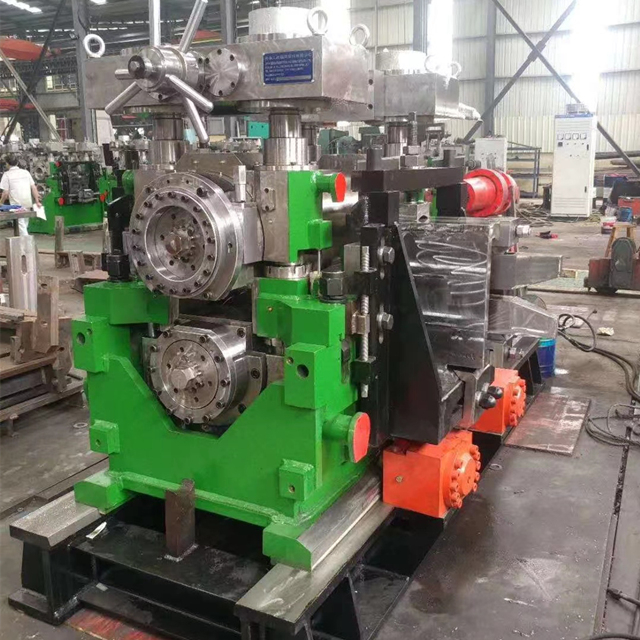

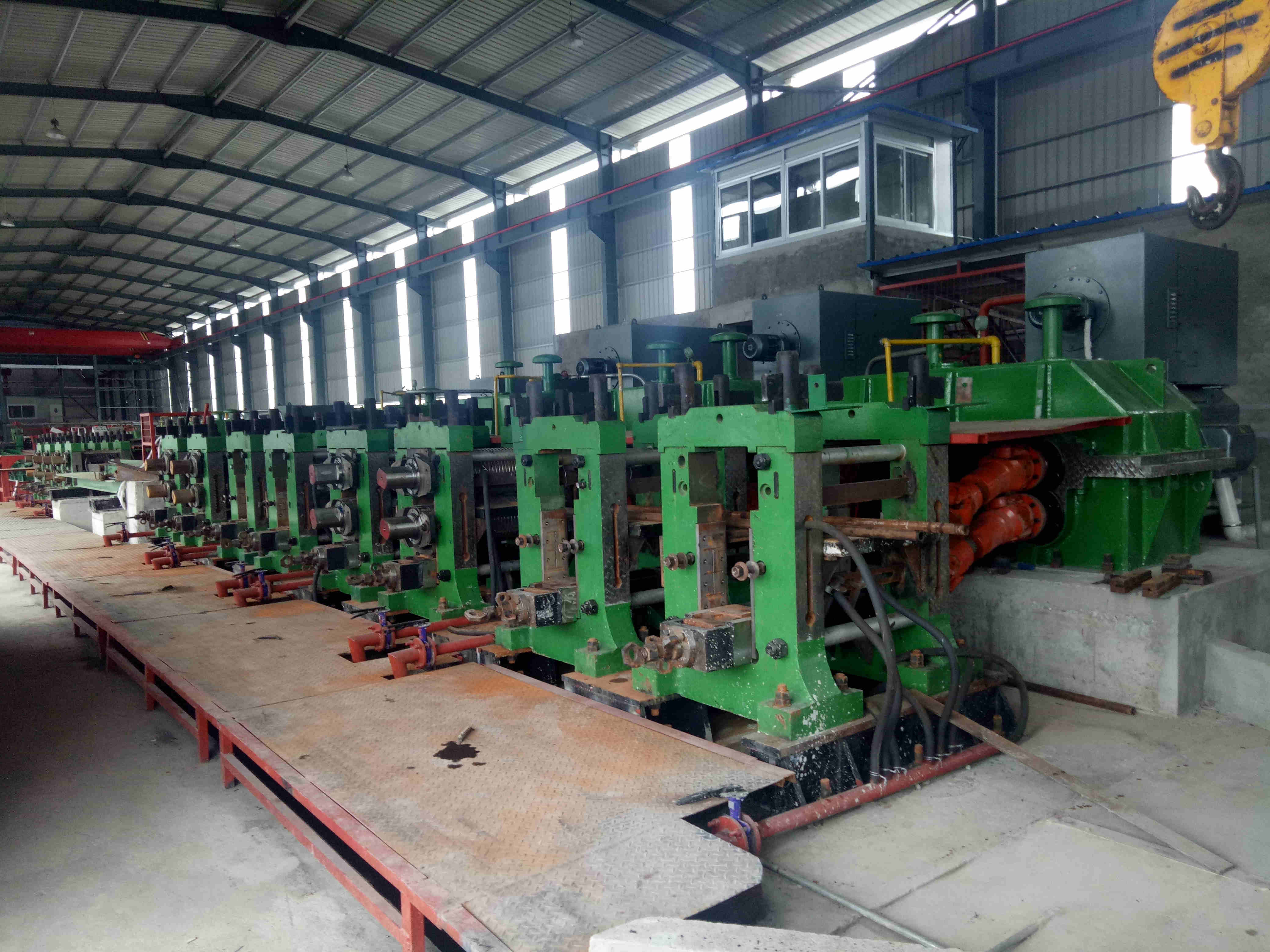

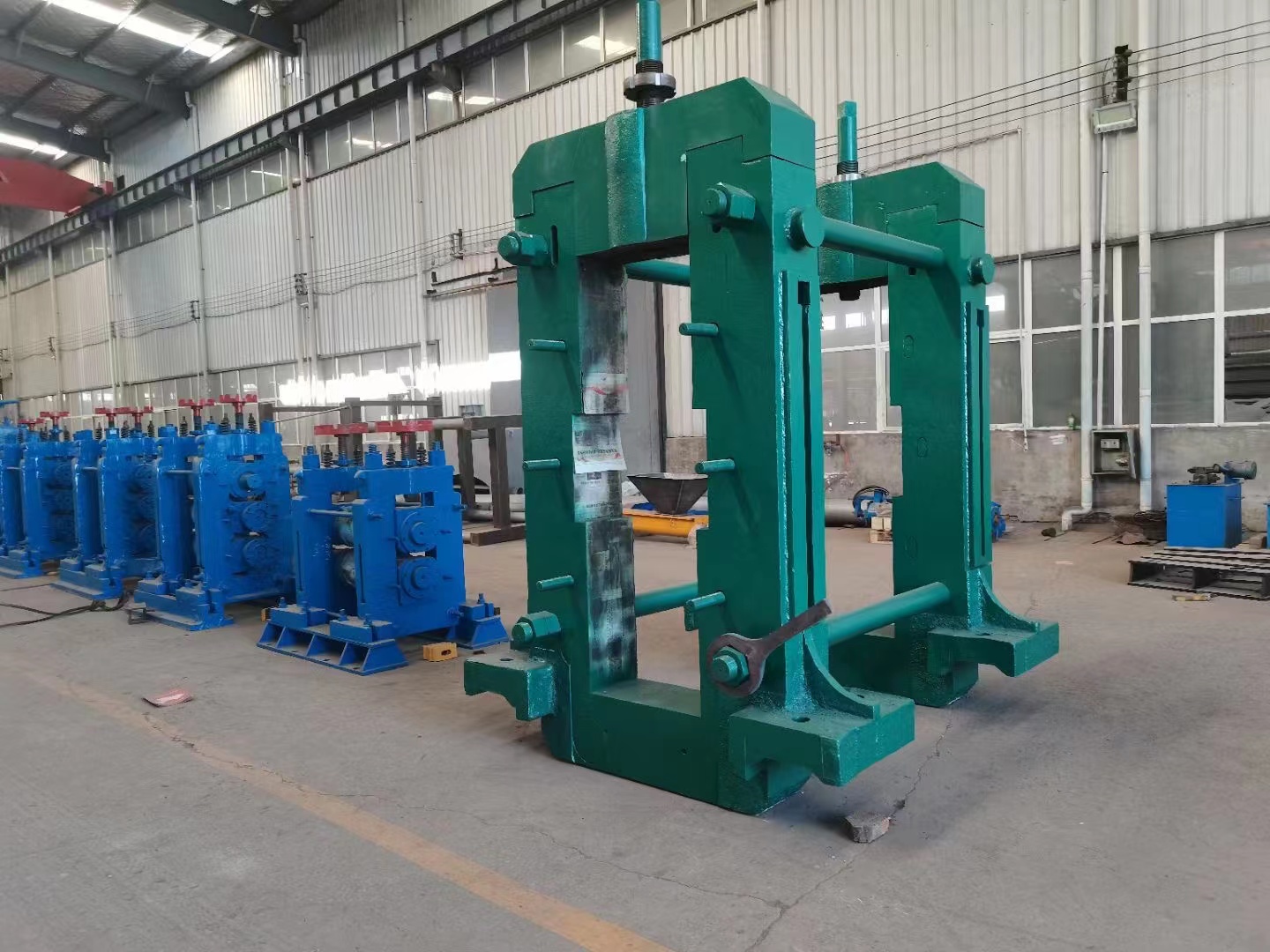

   Rolling mill is used for metal rolling process and refers to complete the whole process of rolling production equipment, including the main equipment, auxiliary equipment, lifting transport equipment and accessory equipment, etc. The rolling mill mainly consists of roller, rolling mill house, bearing package, bearing, workbench, rolling guide, rail chair, roller adjustment device, top roll balance device and roller change device, driving device, cooling bed, finishing facilities with cold shear, bundling system with bar counter and wire tying machines etc

rolling

Parameters:

   A composite high speed wire rod & rebar production line can roll out of a variety of specifications of wire rod and rebar products:

   Small diameter of steel bar: φ8/φ10/φ12/φ14/φ16

   Large diameter of round bar and deformed steel bar: φ18-φ32

   Wire rod specification: φ5.5/φ6.5/φ8/φ10/φ12/φ14/φ16

   Composite high speed wire rod & rebar production line adoped quick-change , fast transfer design, easy replacement of product variety, fast, reliable, simple and easy to master.

   Steel enterprises can flexibly adjust product specifications according to market demand, maket in control!
