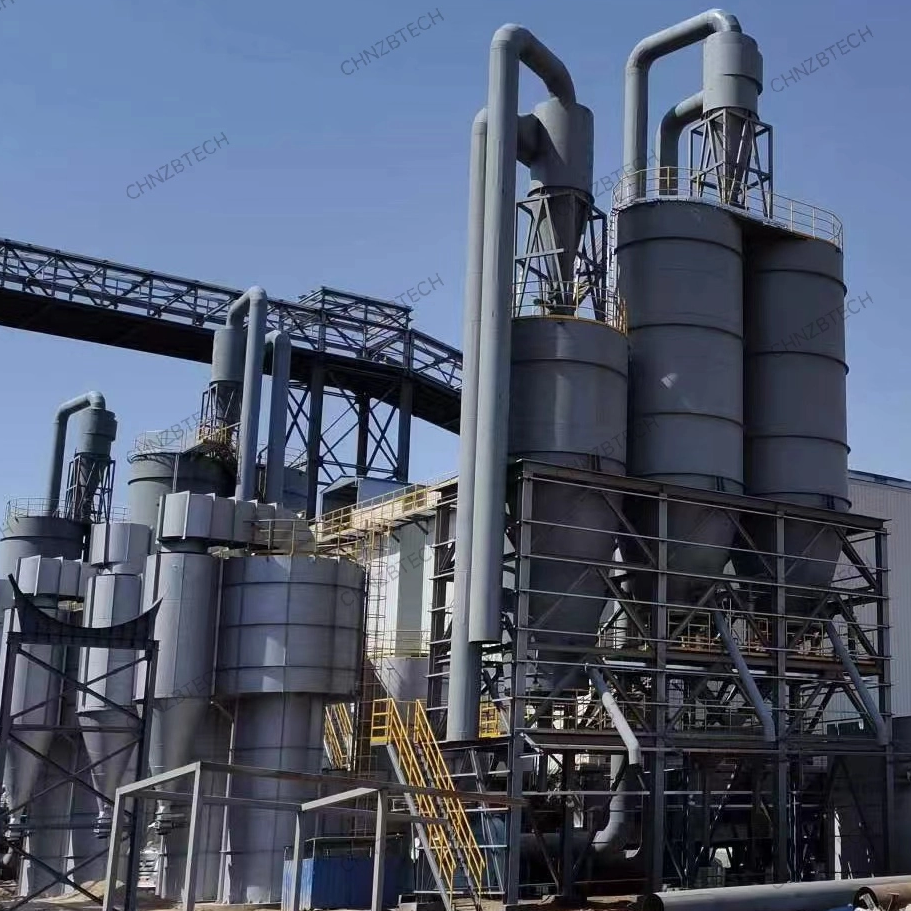

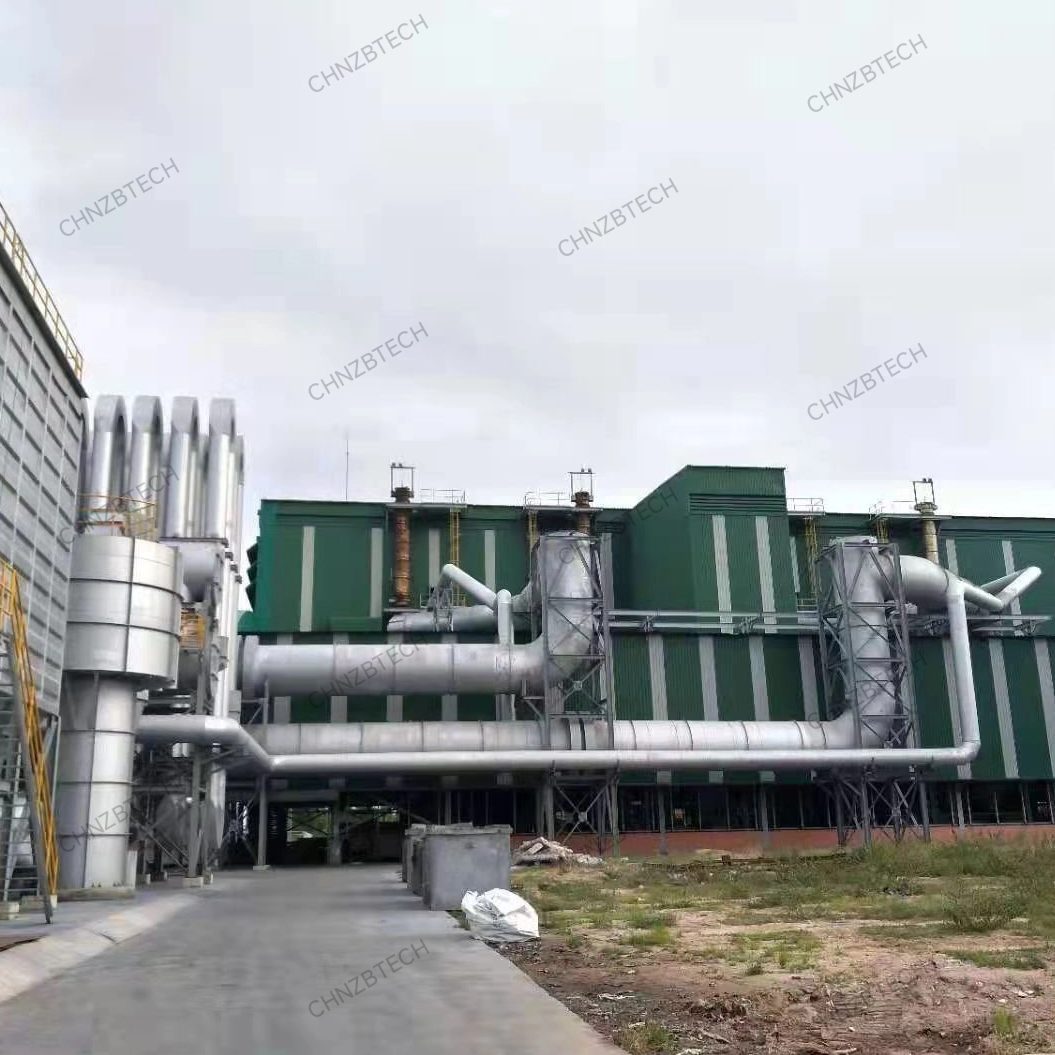

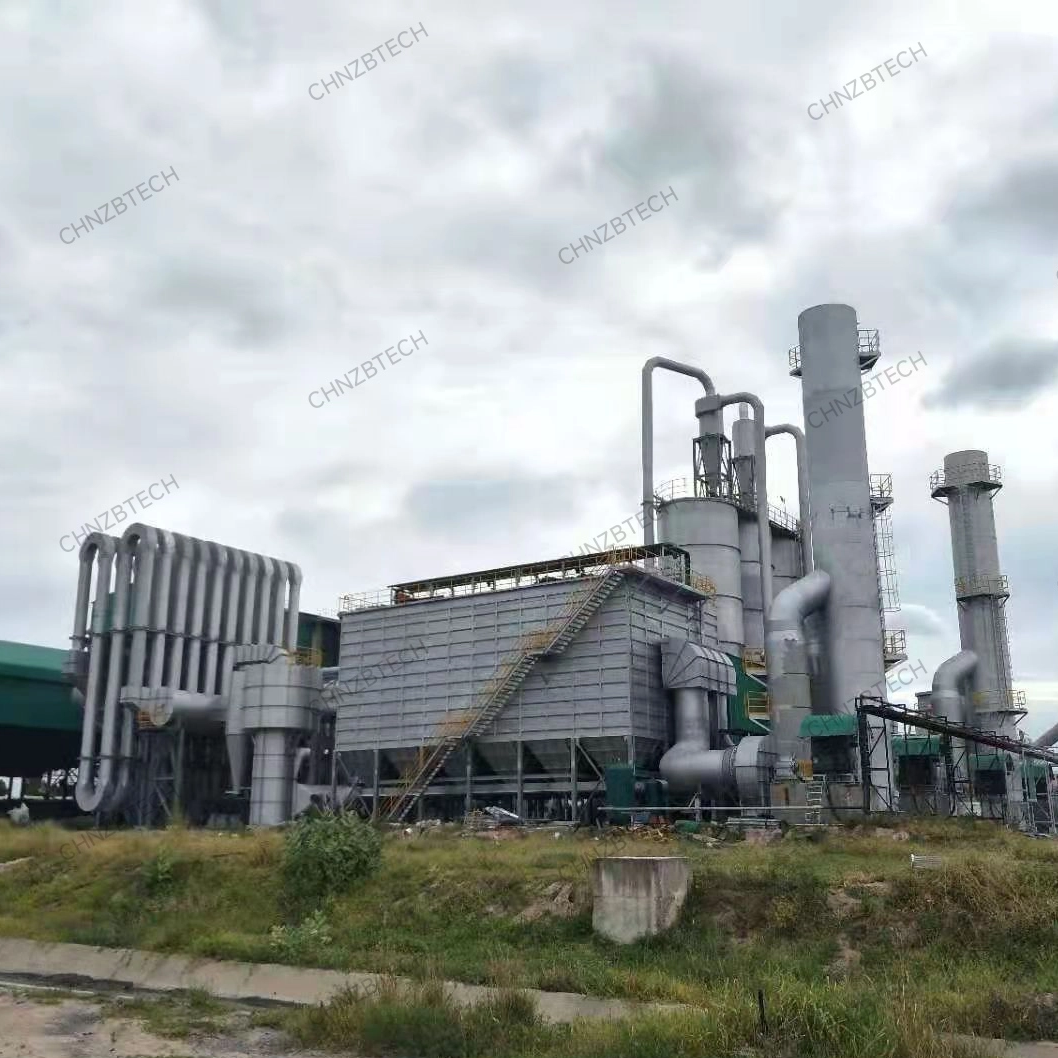

Fume Treatment Plant

Fume Treatment Plant

        The Fume Treatment Plant is an important environmental protection system widely used in steelmaking and metallurgical plants for efficient collection and treatment of high-temperature furnace fumes and dust.

        During smelting operations, large amounts of smoke, dust, and hot exhaust gas are generated from the furnace. CHNZBTECH Fume Treatment Plants are designed to effectively capture, cool, filter, and clean these emissions, helping customers improve workshop conditions, reduce environmental pollution, and achieve cleaner and more efficient production.

        The system can be customized for different furnace types and plant layouts, including Electric Arc Furnaces (EAF), Ladle Furnaces (LF), AOD/VOD furnaces, Submerged Arc Furnaces (SAF), ferroalloy furnaces, and silicon metal furnaces.

Efficient Dust Collection & Filtration

        The dust collection system adopts optimized fume extraction design combined with high-efficiency pulse jet bag filter technology. High-temperature fumes are captured through the collection hood and transported through the ducting system to the filtration unit.

        After cooling and preliminary separation, the dust-laden gas enters the bag filter system, where fine dust particles are effectively removed before clean gas is discharged through the chimney. The automatic pulse cleaning system keeps the filter bags operating efficiently and ensures stable long-term performance.

        With reliable airflow control and low-resistance duct design, the system maintains stable negative pressure inside the workshop while reducing energy consumption and improving dust collection efficiency.

Main Features of CHNZBTECH Fume Treatment Plants

        1. High-efficiency fume and dust collection performance

        2. Stable operation under high-temperature working conditions

        3. Optimized ducting system with low airflow resistance

        4. Advanced pulse jet bag filter system for reliable filtration performance

        5. Customized design according to furnace type and plant layout

        6. Automatic PLC control system for easy operation and monitoring

        7. Energy-saving fan control and optimized airflow management

        8. Low maintenance cost and long service life

        9. Reliable operation suitable for harsh metallurgical environments

Main Components

        1. Fume collection hood

        2. Water-cooled or air-cooled duct system

        3. Spark separator and settling chamber

        4. Pulse jet bag filter / dust collector

        5. Induced draft fan (ID Fan)

        6. Chimney and exhaust stack

        7. Dust conveying system

        8. PLC automation and electrical control system

Why Choose CHNZBTECH?

        1. Customized engineering solutions for different metallurgical applications

        2. Rich experience in steelmaking and ferroalloy furnace projects

        3. Stable and reliable equipment performance

        4. Professional technical support from design to commissioning

        5. Punctual delivery and attentive after-sales service

        6. CE and ISO certified manufacturer
