Brand CHNZBTECH
1. Power, labor, raw material saving with high yield.
2. Different capacity from 18MVA to 60MVA or even lager are available;
3. Mature deign, know-how technology for ferrosilicon production;
4. Different structure, different design with highly customized;
5. Punctual delivery, high end quality, and attentive service after sale;
Application:
Ferrosilicon submerged arc furnace will be mainly applied for reduction of metallurgical ore to produce the FeSi, FeMg, FeCr, Ferrotungsten, SiMg and Titanium slag alloy, which will be the important material for metallurgical and chemical industries.
Features of the equipment:

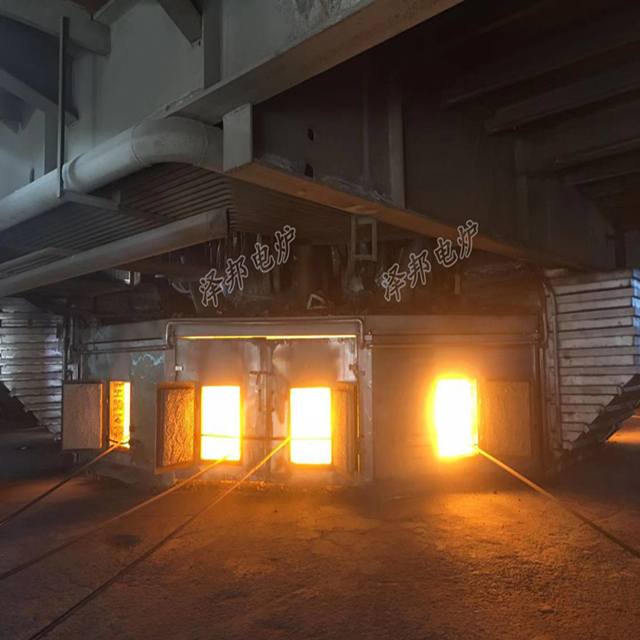

For submerged arc furnaces, the lining will be made of carbon or magnesia refractory material. The electrode is s elf-baking. The electrode will be inserted into the charging material.
The material will be molten by arc and current. The charging material will be continuously adding. The tapping will be batch type. It is a continuously operation industry furnace.

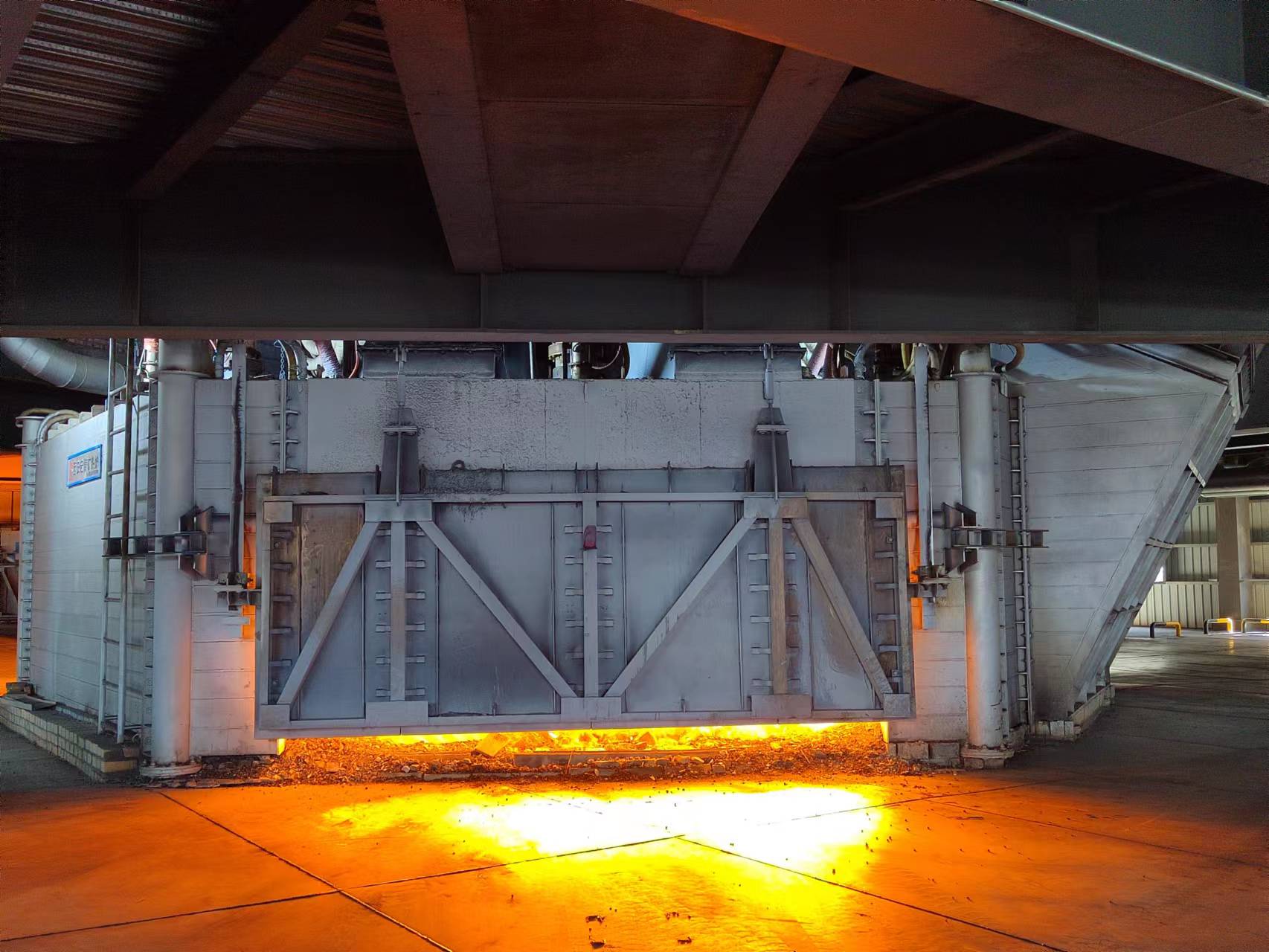

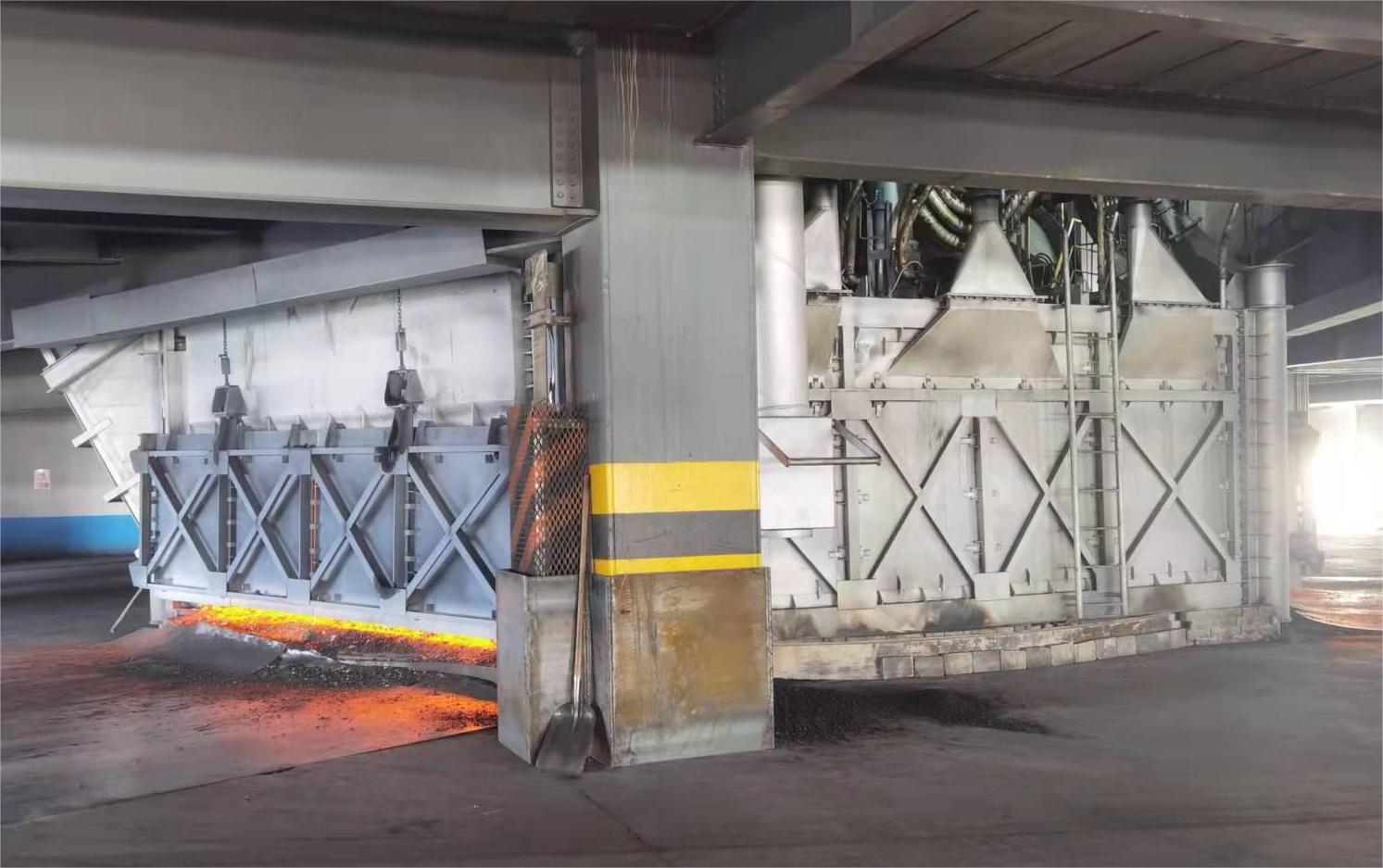

1. Furnace shell
2. Fume hood
3. Exhuast system

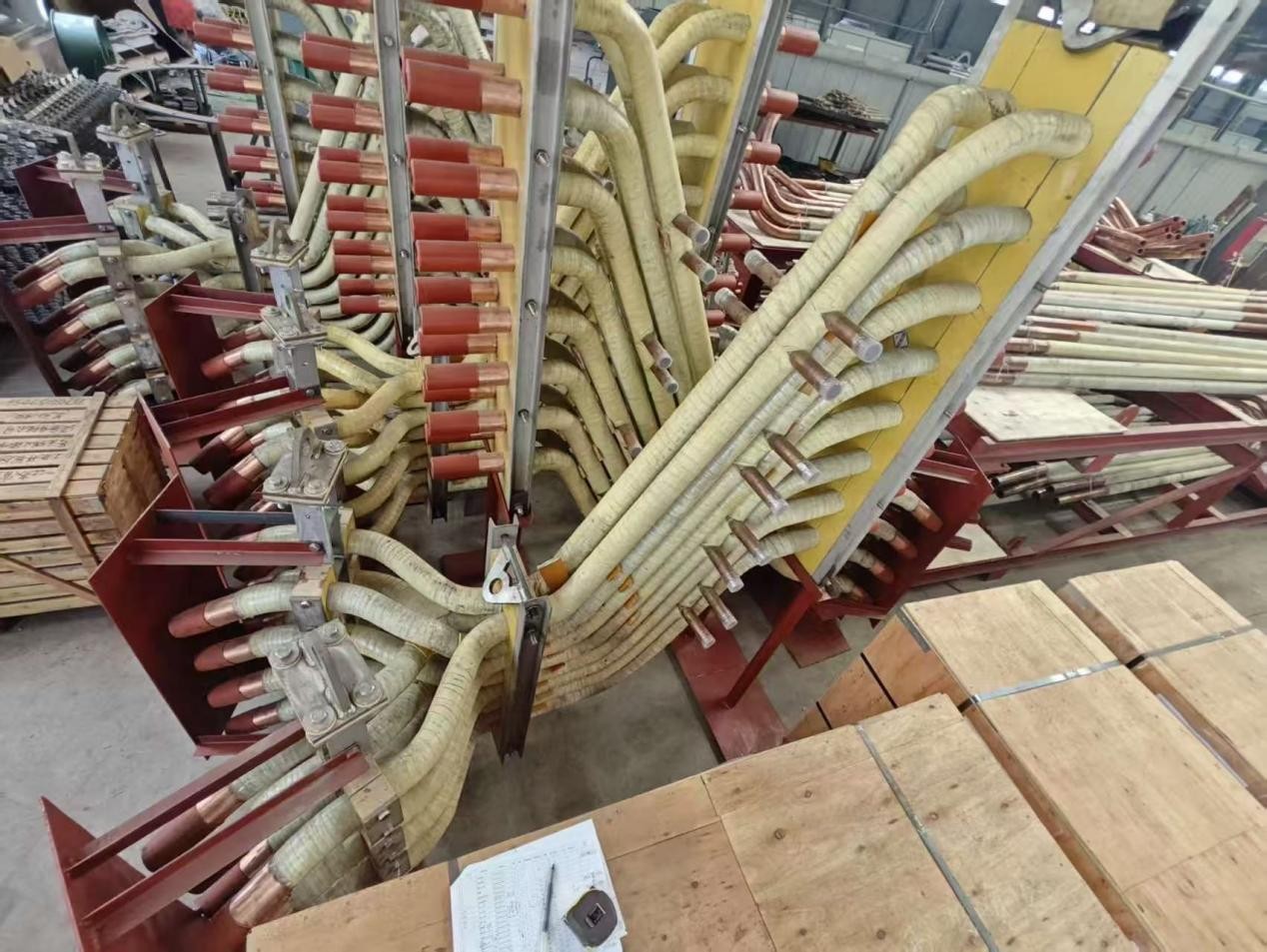

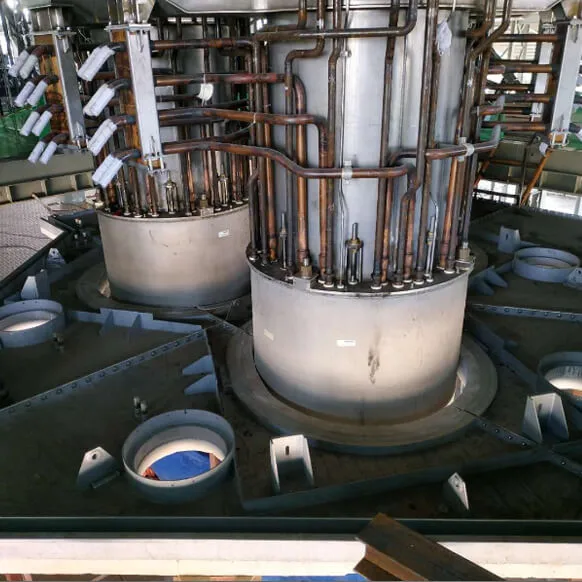

4. Electrode holding & large current system
5. Hydraulic system

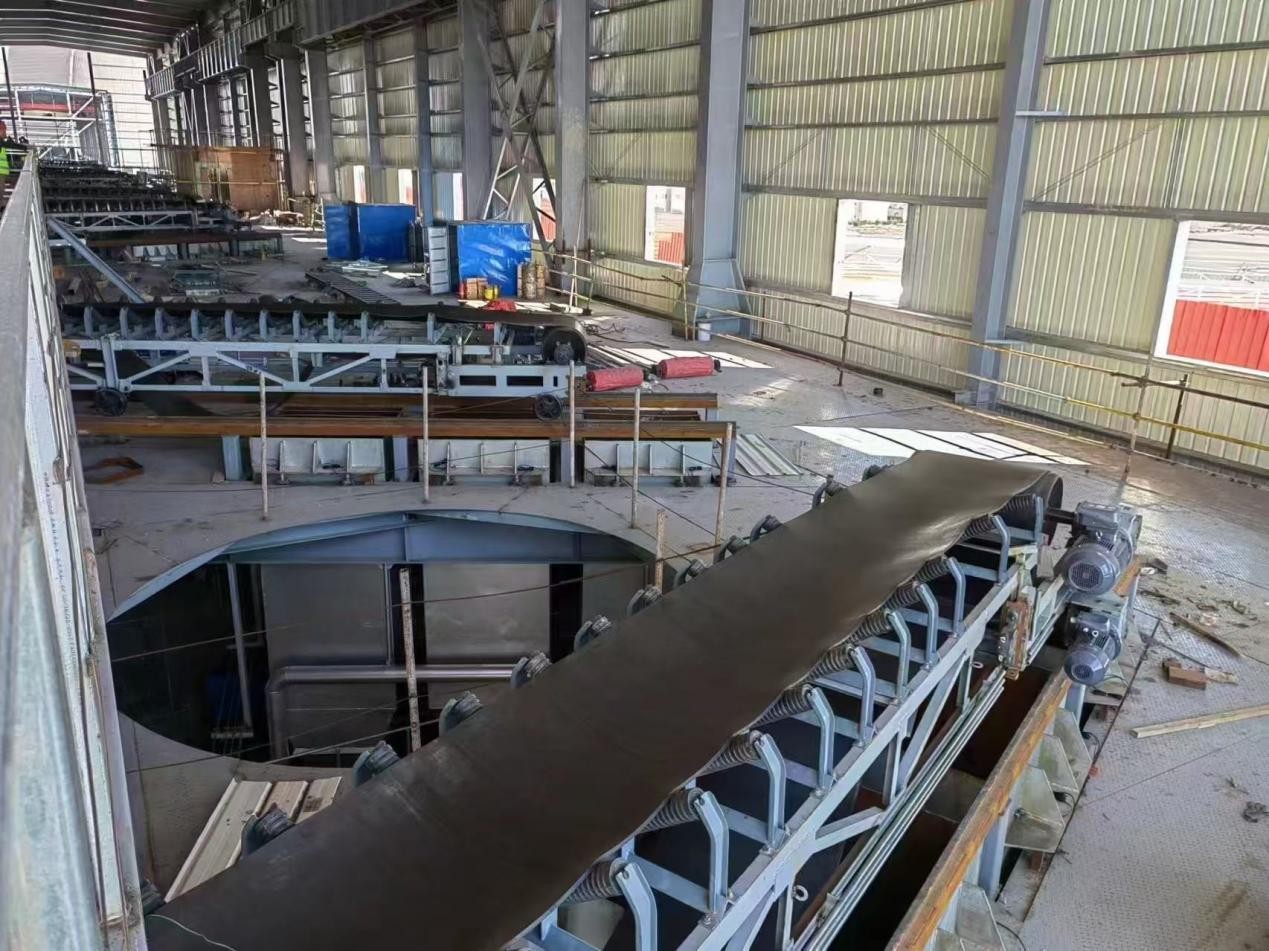

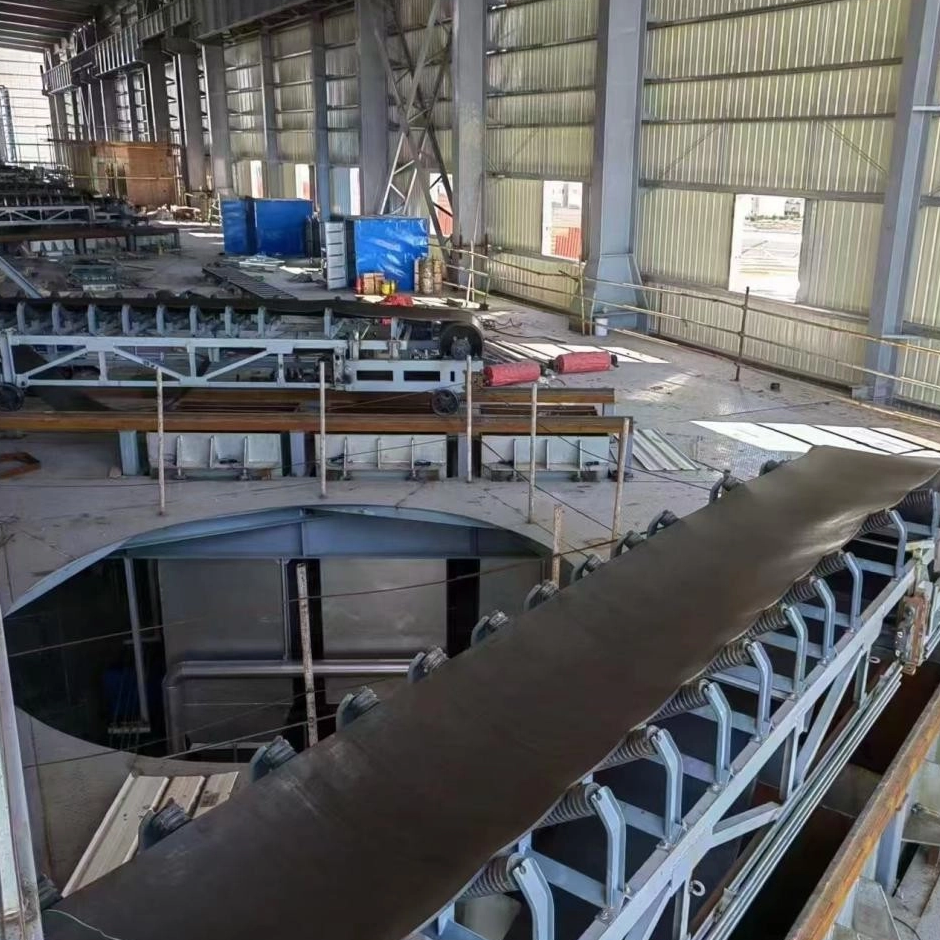

6. Material dosing & charging system

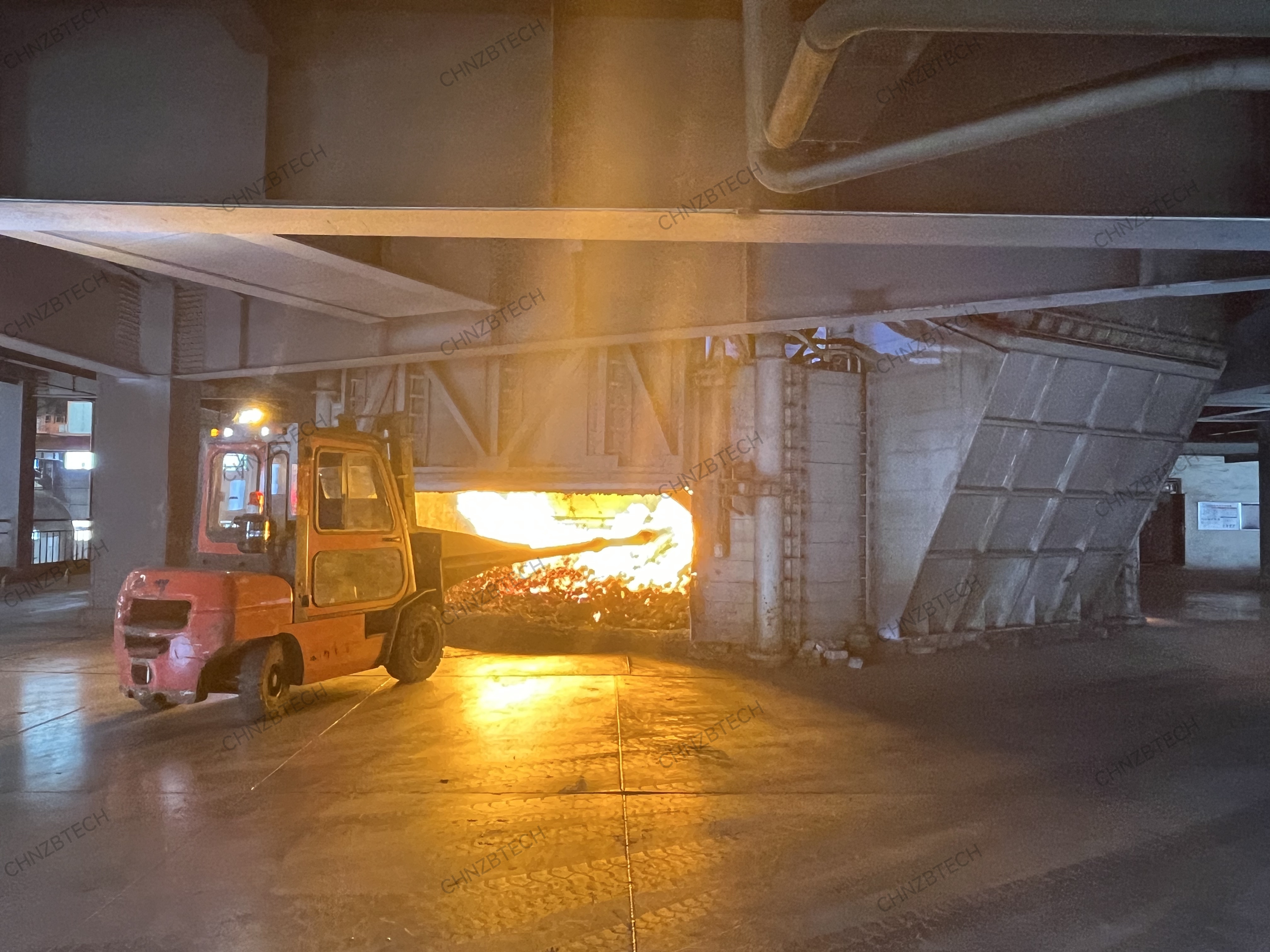

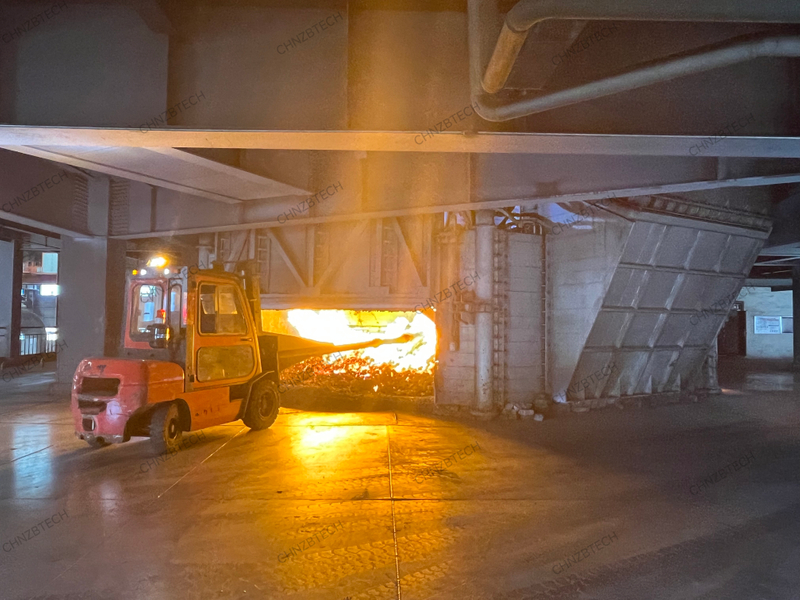

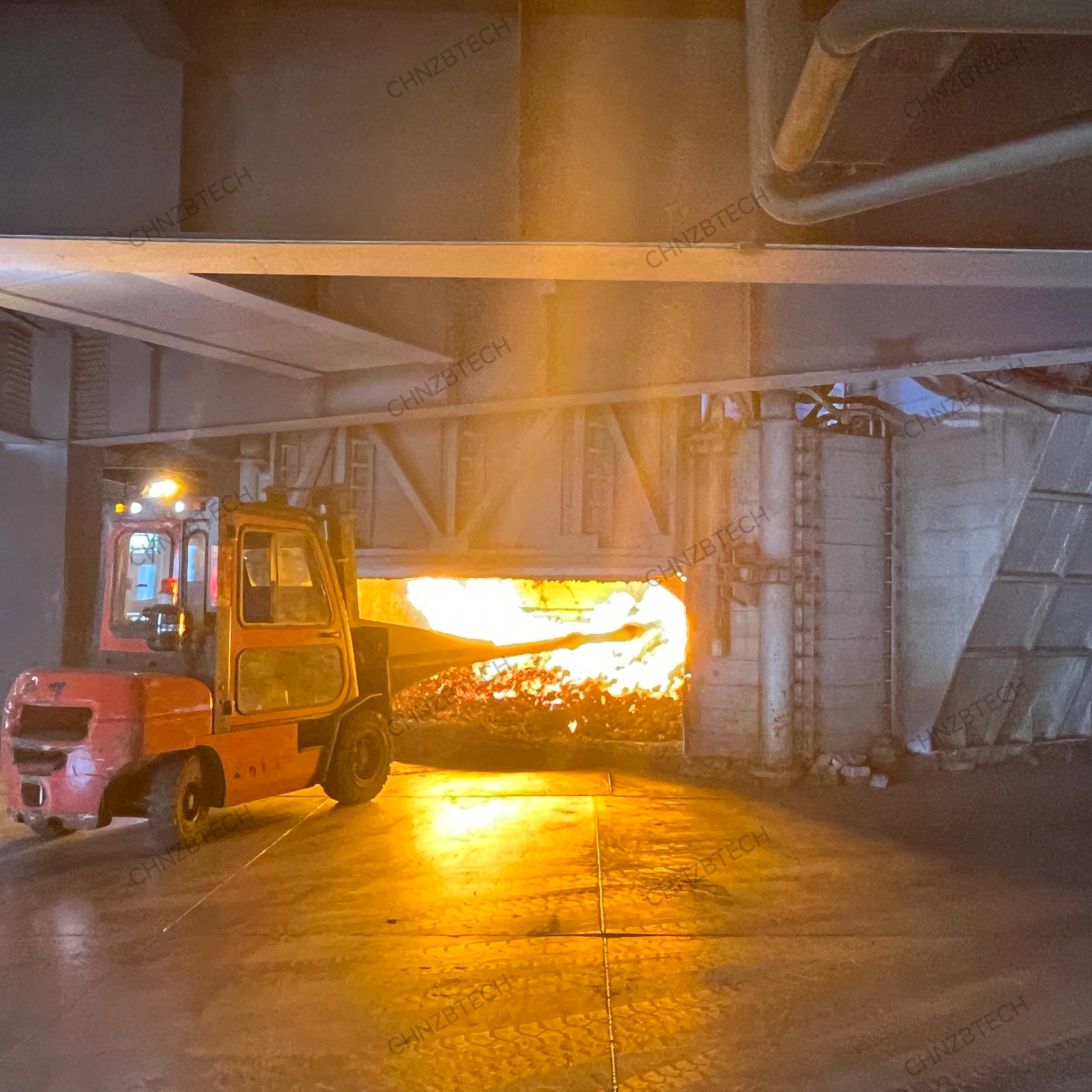

7.Tapping system
8. Electrical system
Grade | chemical composition % | |||||||||||||
Si | Al | Ca | Mn | Cr | P | S | C | |||||||
Scope | no greater than | |||||||||||||
FeSi75Al1.5-A | 74.0~80.0 | 1.5 | 1 | 0.4 | 0.3 | 0.035 | 0.02 | 0.1 | ||||||
FeSi75Al1.5-B | 72.0~80.0 | 1.5 | 1 | 0.5 | 0.5 | 0.04 | 0.02 | 0.2 | ||||||
FeSi75Al2.0-A | 74.0~80.0 | 2 | 1 | 0.4 | 0.3 | 0.035 | 0.02 | 0.1 | ||||||
FeSi75Al2.0-B | 74.0~80.0 | 2 | 1 | 0.4 | 0.3 | 0.04 | 0.02 | 0.1 | ||||||
FeSi75Al2.0-C | 72.0~80.0 | 2 | 0.5 | 0.5 | 0.04 | 0.02 | 0.2 | |||||||
FeSi75-A | 74.0~80.0 | 0.4 | 0.3 | 0.035 | 0.02 | 0.1 | ||||||||
FeSi75-B | 74.0~80.0 | 0.4 | 0.3 | 0.04 | 0.02 | 0.1 | ||||||||
FeSi75-C | 72.0~80.0 | 0.5 | 0.5 | 0.04 | 0.02 | 0.2 |
