Model of ferroalloy refining furnace equipment

Views:6     Author:Site Editor     Publish Time: 2021-01-08      Origin:Site

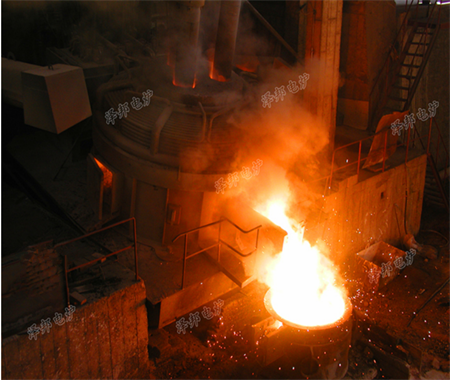

high carbon ferrosilicon furnace- CHNZBTECH


The ferroalloy refining furnace is mainly used for desilication refining of ore, high-silicon low-carbon ferroalloy re-refining products and fluxes to obtain medium-carbon, low-carbon, and micro-carbon ferroalloy products. It is generally an electric arc smelting furnace; Smelting of ferroalloy products such as, medium chromium, low chromium, low microchromium, nickel-iron, ferromanganese, high-titanium slag, rare earth alloys, zirconium and other iron alloy products.


Model parameters of ferroalloy refining furnace equipment:



Technical parameter/Model1000KVA1800KVA2200KVA3200KVA4000KVA6300KVA8000KVA
Hearth diameter(mm)2750320034003700420047005300
Transformer rated capacity(KVA)1000180022003200400063008000
Transformer first voltage(KV)10/3510/3510/3510/3510/3510/3510/35
Transformer secondary voltage(V)180-75210-95220-109240-121260-139310-151340-175
Graphite electrode diameter(mm)200250300350400400450
Tapping angle/slag tapping angle                                                                 45°
Cooling water consumption(m³/h)601001502503000300350

The above data is for reference only and can be reconfigured according to user needs.


Xi’an Zebang Electric Furnace Co., Ltd. is located in Xi’an, the ancient capital of the thirteen dynasties. It is a technology-based enterprise that provides complete sets of steel-making equipment for domestic and foreign steel industries and undertakes “turnkey” projects (EPC). The business scope focuses on the design, manufacture, installation and commissioning of complete steelmaking equipment, covering the design and manufacture of other metallurgical equipment, transformation and upgrading, and process technical services.


The main products include steel-making electric arc furnaces, ladle refining furnaces, VD/VOD furnaces, submerged arc furnaces, induction furnaces, brazing furnaces, electroslag furnaces and other metallurgical equipment. The company's customers are all over the country and exported to foreign countries, from large steel plants to design institutes, such as Japan JSPC Design Institute, MCC Huatian, MCC Beijing, MCC Saidi, MCC South, Beijing Mingcheng, Maanshan Iron and Steel Design Institute ; Provided a complete set of steelmaking equipment for Hyundai Steel Company (300 tons LF), Iran Natanz Steel Company (75 tons EAF and 80 tons LF) and Vietnam TNC Steel Company (40 tons EAF), which formed a good Partnership.


The company adheres to the tenet of "innovative development, sincere service", advocating the corporate culture of "down-to-earth, excellence", and will provide our customers with better equipment and services.

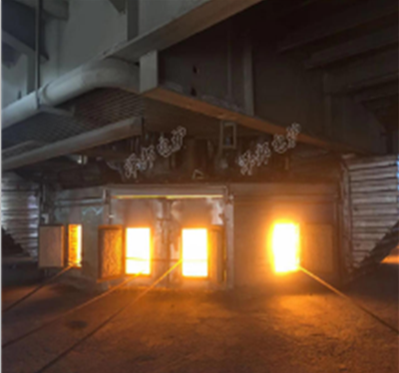

silicomanganese furnace- CHNZBTECHSi-Mn furnace suppliers- CHNZBTECH
